Texture Arrays not supported in custom shader export

🌵 Needle Engine
1

I have the exportshader tag and its an unlit shader and I think I followed the documentation tips for the shaders

https://cdn.discordapp.com/attachments/1088071192411381821/1088071193023742052/Proyecto-CEU_-_Prueba_Cam_-_Windows_Mac_Linux_-_Unity_2022.2.7f1__DX11__2023-03-22_13-03-28.mp4?ex=65d5e743&is=65c37243&hm=c5f2065c6337b2661816065dc2439a6f48165f0b8d940a551eb4c2749124d154&(image larger than 2 MB)

Original Post on Discord

by user 483253293477265409

2

Solved the issue in DMs with the OP.

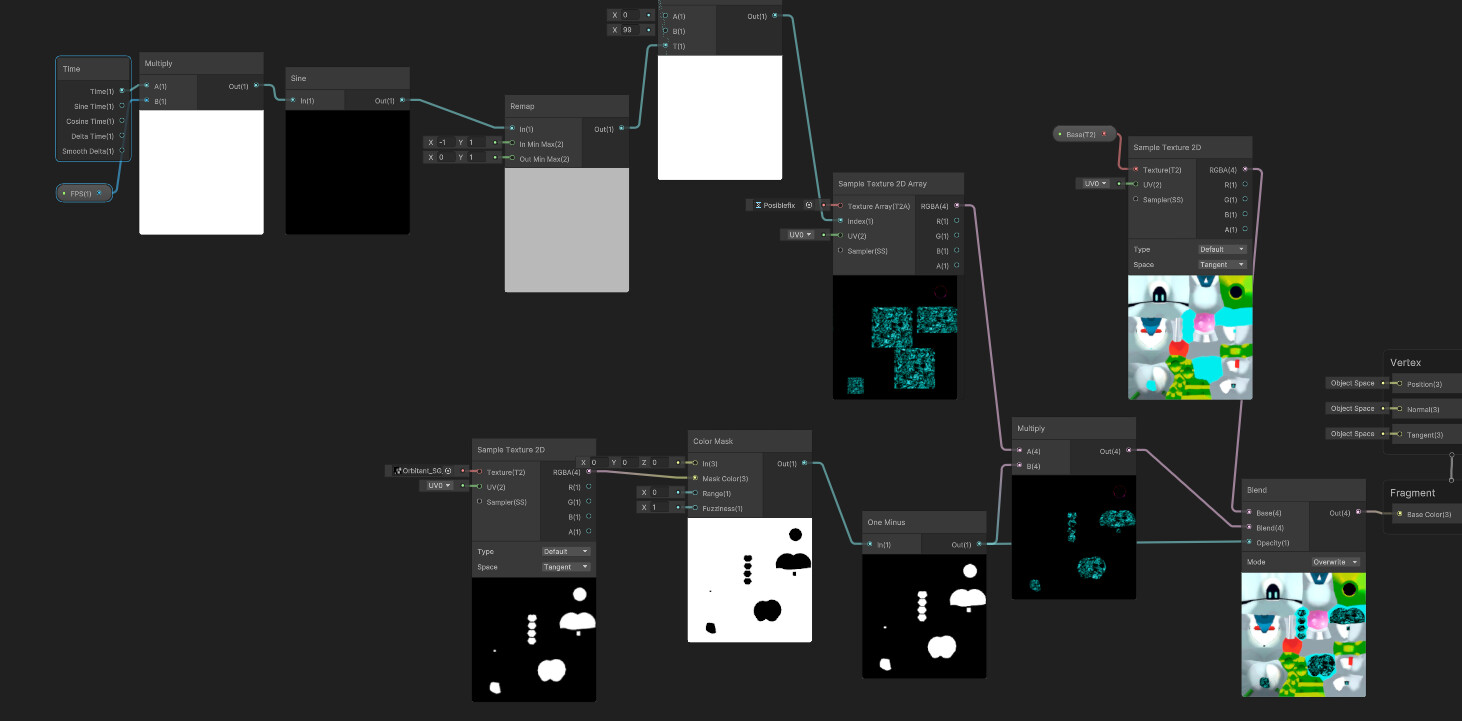

More high res image of the shader graph:

3

1462×721 107 KB

4

Sample Texture 2D Array Node and Texture 2D arrays are not supported.

Although, same effect can be achieved with a flipbook:
https://docs.unity3d.com/Packages/com.unity.shadergraph@6.9/manual/Flipbook-Node.html
(Only issue with the Flip book, is that the UV’s X axis is flipped on the web)

So that would be the solution here.

With the Texture 2D array, while exporting to the web, it verbally writes this error. So it’s a good practice to watch out the log for these kind of clues:

5

6

Indeed, texture arrays are currently not supported - there’s right now no equivalent to them in glTF unfortunately

7

Changed the channel name: Texture Arrays not supported in custom shader export
