Doubled up embedded textures in GLTF Separate files in Needle with UnityGLTF

đŸŒ” Needle Engine
81

Just tried the repro proj from above with Needle exporter 2.58.2-pre the export is still huge because UnityGLTF within it is ignoring the original import settings of the textures
 It doesn’t respect the UnityGLTF internal import settings per those textures either but there isn’t any reason to have 2x import settings and one of them just ignored

by user 103054507105067008

82

Also means per-model with UnityGLTF I have to always go in, select all those textures and tick ‘Override for Needle Engine’ then change max size down to 2048. Can that be preset anywhere at least?

by user 103054507105067008

83

image.png772×373 43.8 KB

by user 103054507105067008

84

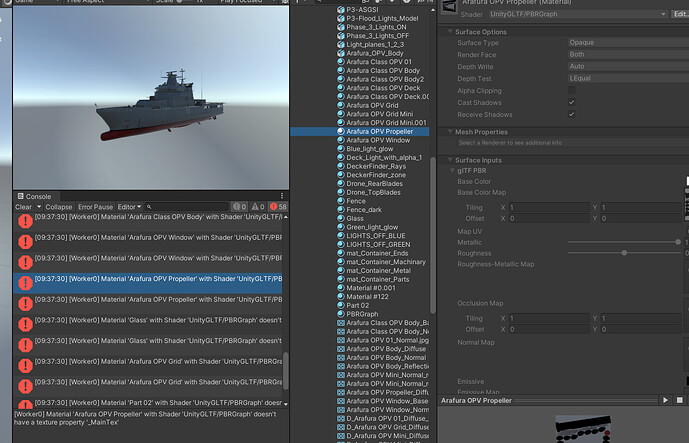

I get a load of these errors when I tried a production build with the imported texture settings set in UnityGLTF too

image.png1268×815 214 KB

by user 103054507105067008

85

And loads of these

Material 'LIGHTS_OFF_GREEN' with Shader 'UnityGLTF/PBRGraph' doesn't have a texture property '_MainTex'
UnityEditor.ShaderGraphHelpers:ValidateMaterialKeywords (UnityEngine.Material)
UnityGLTF.PBRGraphGUI:ValidateMaterial (UnityEngine.Material) (at Library/PackageCache/org.khronos.unitygltf@1.20.2-pre/Editor/Scripts/ShaderGraph/InternalShaderGraph/PBRGraphGUI.cs:32)
UnityGLTF.PBRGraphUniversalGUI:ValidateMaterial (UnityEngine.Material) (at Library/PackageCache/org.khronos.unitygltf@1.20.2-pre/Editor/Scripts/ShaderGraph/InternalURP/PBRGraphUniversalGUI.cs:24)
UnityEngine.GUIUtility:ProcessEvent (int,intptr,bool&)

by user 103054507105067008

86

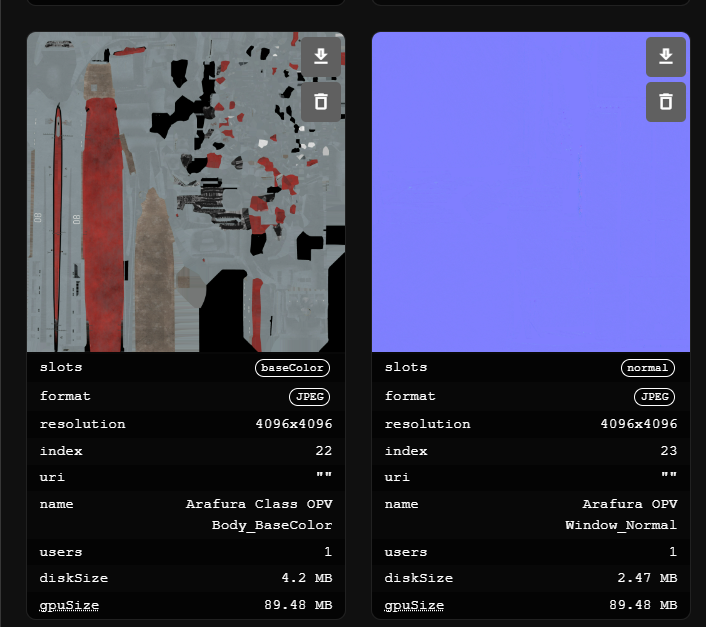

Ignoring me setting everything to 2048x2048 max size in UnityGLTF :frowning_with_open_mouth:

image.png706×627 216 KB

by user 103054507105067008

87

What do you mean by that?

88

This is caused by a UnityGltf change, will be fixed in the next version. It doesn’t matter if production build or not, it’s just Unity being picky about shader properties being accessed that don’t exist. It does not change behaviour, just annoying

89

If you import a GLTF+Separate model with GLTFast and click an imported material, the textures point to the separated out textures wherever they are (for me this is in a /textures folder next to the model). If you switch to UnityGLTF import and do the same, the textures on the materials point to the embedded texture imports that UnityGLTF makes under the model and not those outside textures

by user 103054507105067008

90

But I also noticed that the UnityGLTF imported file in a Needle export still ignores my max texture sizes set in UnityGLTF on those embedded texture import settings

by user 103054507105067008

91

Which link was the right for reproducing this? This is absolutely not what UnityGltf is / should be doing.

92

In fact, glTFast only recently (in 5.0) switched to using the textures on disk instead of adding them as subassets because I convinced Andreas to change it to exactly the way UnityGltf does it


93

I’ll zip a tiny repro up for you, should be the same project I linked at the very start though I’ve been using to test throughout, just update the packages

by user 103054507105067008

94

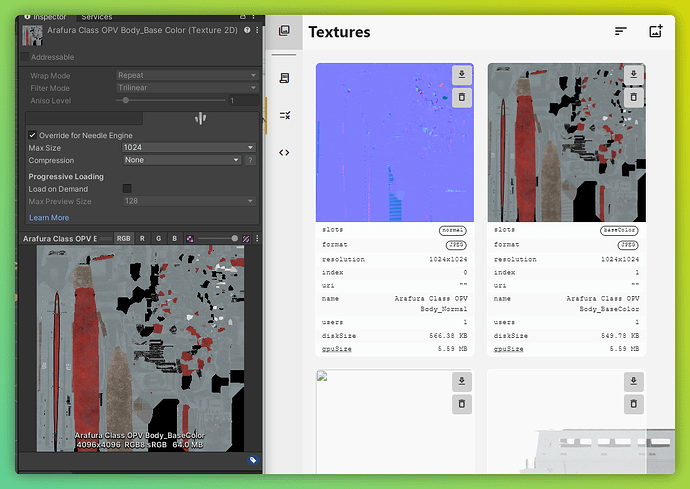

I can not reproduce this. Just imported the boat you sent yesterday and set the import size to 1k I do get the 1k texture exported

95

image.png1108×786 372 KB

96

I imported it in 2020.3 right now

97

Thanks, yeah would be great to get the latest state that you have.

98

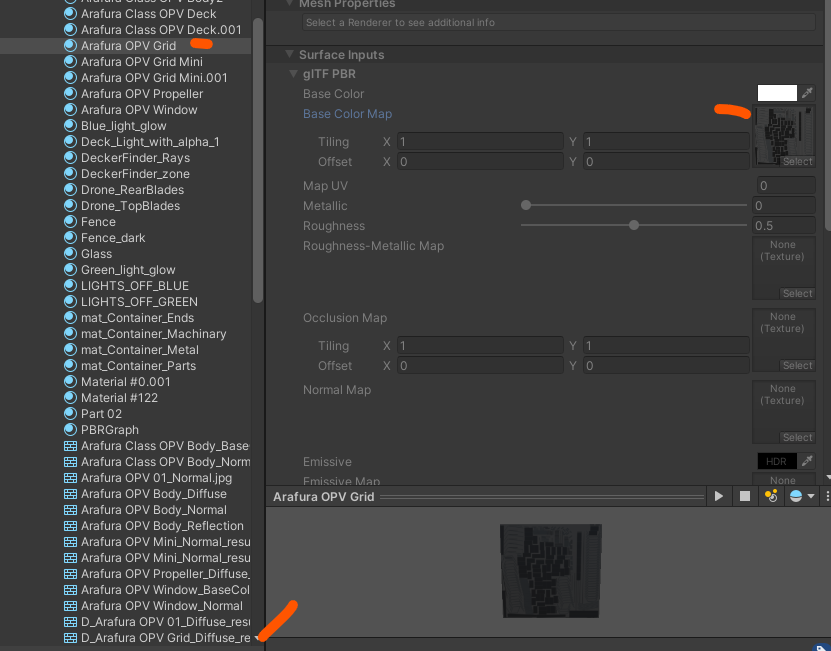

The use of those embedded textures only happens on some materials in the original file in the repro project at the very top of this thread

image.png831×651 86.1 KB

by user 103054507105067008

99

This one? Discord

100

As said UnityGltf should never import textures double and I haven’t seen that happen before, like, ever. I’ll take a look on this project as well
