Just discovered needle today. Playing with the image target and place tracking in web AR already giving me goosebumps. I wanted to know if it’s possible to develop a WebAR face tracking app with Needle? Either with ARCore or ARKit package in Unity, or Mediapipe ?? If yes, can someone give me some direction? Thanks
by user 373346625025736705
hello. see here for a related discussion: Discord
by user 395602247196737546
Thanks for the reply. I have checked it out. Seems like I will have to use the needle engine to achieve this. I have one more question. What is the purpose of these packages? GitHub - needle-mirror/com.unity.xr.arkit: Provides native Apple ARKit integration for use with Unitys multi-platform XR API.Supports the following features:-Efficient Background Rendering-Horizontal Planes-Depth Data-Anchors-Hit Testing-Face Tracking-Environment Probes-Meshing-Occlusion 📦 [Mirrored from UPM, not affiliated with Unity Technologies.]?
by user 373346625025736705
those are unity’s own privateley developed packages. they do not live on any public repository so the needle guys mirror them to github. this way, we can easily look into their code online, see a version history and so on. they are standard c# packages, so they do not work with needle engine.
i can see how both engine and all of the mirror packages has “needle” in it is a bit confusing. even more so as the needle engine fame overshadows everything else lately
by user 395602247196737546
True that. Basically we as company “Needle” are providing a number of packages and services, and Needle Engine is the latest and biggest endeavour of those. Sorry for the confusion!
@zero-aspect yes, MediaPipe face tracking would be the way to go for cross-platform face tracking in the browser. While QuickLook on iOS supports face tracking, there’s no WebXR face tracking spec as of today unfortunately, so no Android support (and the iOS support is limited to rigid heads)
Got it. I will give it a try. I am basically trying to achieve a try on effect with needle. The hand tracking should be a good start for me. But I probably also need to figure out how to 1. render the camera feed 2. Calculate the 3D coordinates of the face landmarks from 2d data!? Never used TS or JS in my whole life. Gonna be fun
by user 373346625025736705

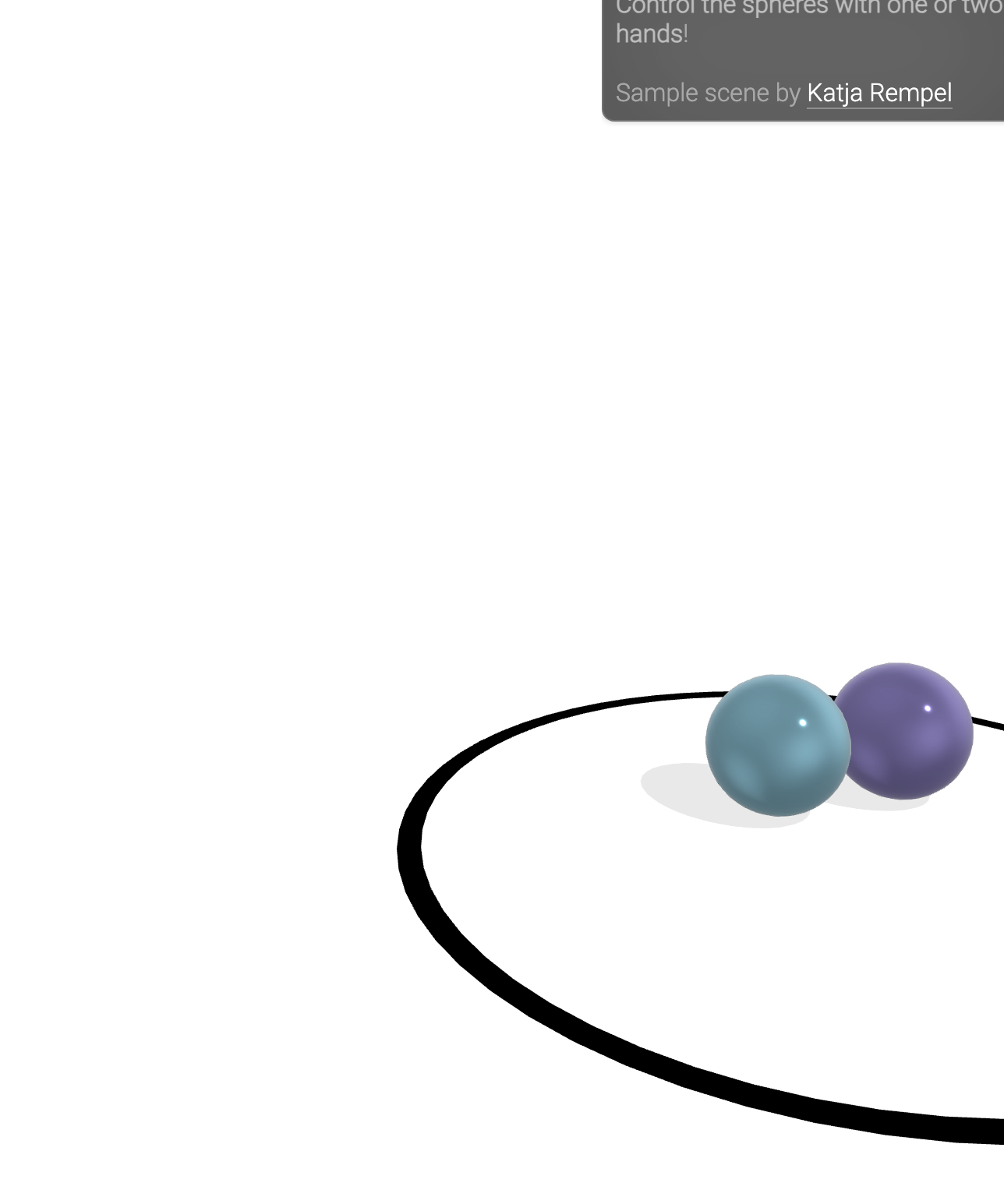

I have started playing with the media pipe example, but struggling a lot to show the camera feed. I tried to follow the thread from @maXR but no luck. this is how my background looks like. It detects the camera, but possibly some other component is hiding it. Any hits or reference to approach this
by user 373346625025736705
At first glance this looks like you have to set the background to transparent
I’m at work atm but I’ll try to have a look later
by user 474974683163394049
Thanks for such promt reply!! I will keep trying and see if I can figure it out. I have made the background white, but it makes it white. When i inspect the video component it does not select anything. Not sure whats going on tbh.
by user 373346625025736705
Ah ok, so the video stream is there, the canvas is just “overlaying” it. Not quite sure how MediaPipe is implemented, but I guess you can bring your video in NY setting the z-index of the canvas to e.g. -10. Doesn’t solve your problem though
by user 474974683163394049
To try things in a fresh project without mediapipe, I used this project. Its a empty project with just the web cam. But I just see sky
by user 373346625025736705
There is a VideoTexture class in threejs, which should help using the video as background. Not sure if needle engine supports video background or if you have to implement it yourself Oo
by user 474974683163394049
Understood. I will try that out if this goes nowhere. Lets see if anyone else from the Needle team has some way around
by user 373346625025736705
Some additional Information before I give up and go to bed

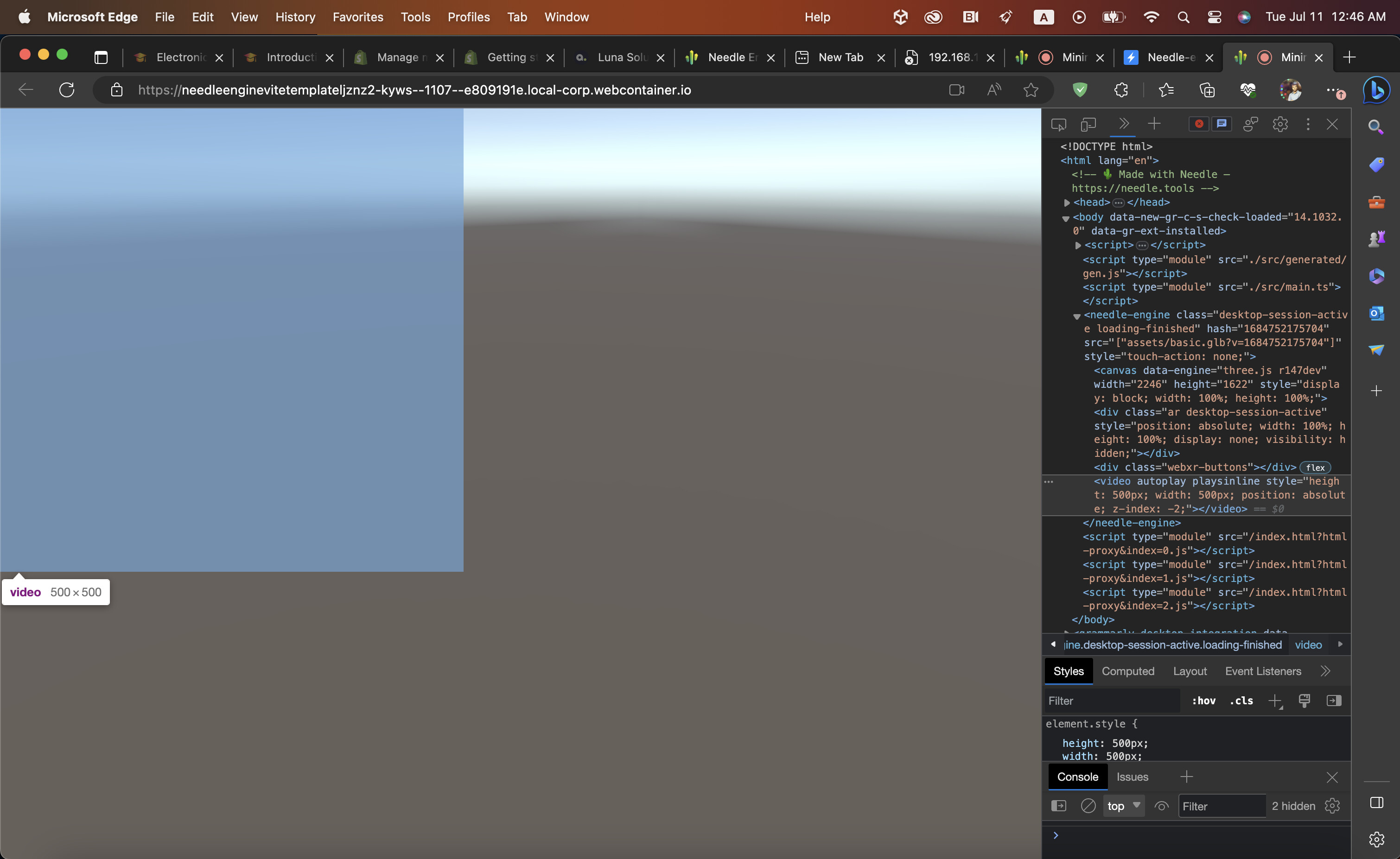

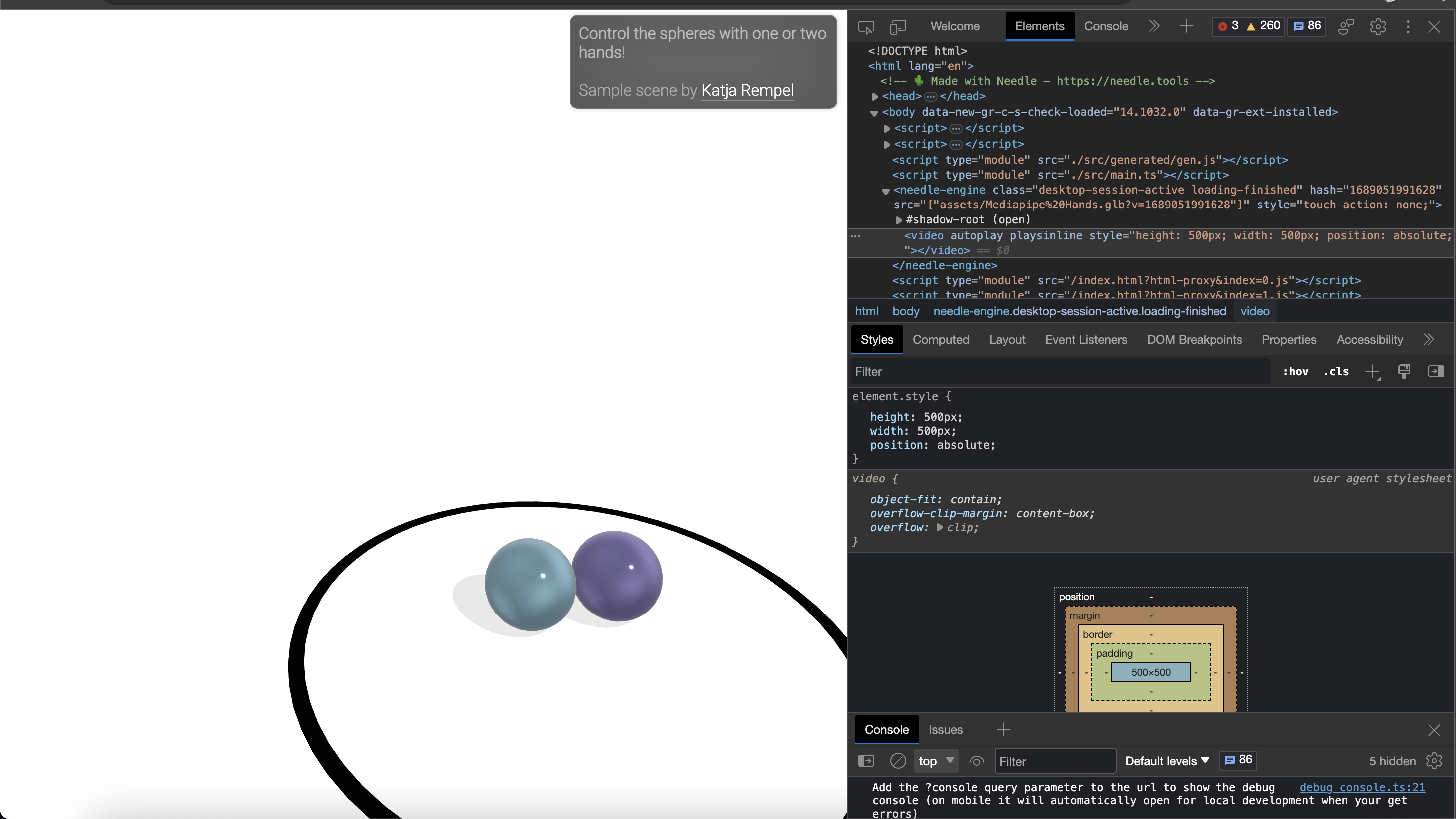

In the stackBlitz project I could somehow see the area the htmlvideoplayer occupy.(Pic) But I dont see it my local project. (Pic2)
There is some #shadow-root id on Pic 2 which is not present in Pic 1. Code for both is same
by user 373346625025736705
This took me some time, so sry for the late reply
To get the camera feed, you’ll have to do a few things.
this._video.playsInline = false;video {
position: fixed;
overflow: hidden;
min-width: 100%;
min-height: 100%;
width: auto;
height: auto;
z-index: -10;
}
by user 474974683163394049
Thanks a lot for your time. For me it only sort of works when I put the video in shadowDom
if(this.context.domElement.shadowRoot)
this.context.domElement.shadowRoot.appendChild(this._video);
by user 373346625025736705
