Glass shader

🌵 Needle Engine
3

The AI assistant is almost right here. Glass materials are explained in the UnityGLTF docs, but for completeness I’m gonna post it here as well.

  1. Create a new material

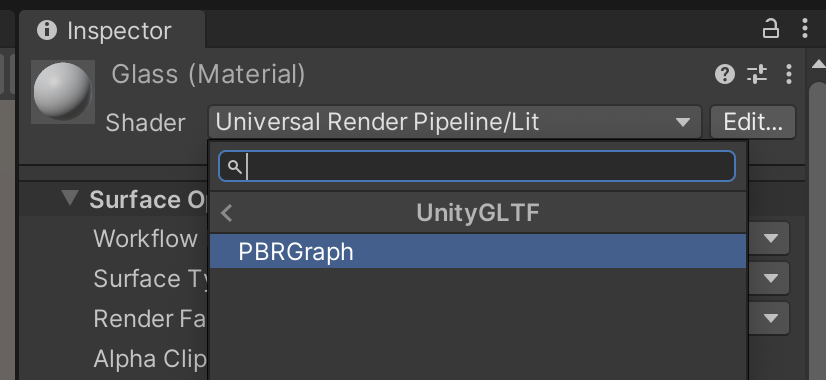

  2. Switch the shader to UnityGLTF/PBRGraph
    image826×380 40.1 KB
  3. Enable transmission (which is what makes glass look like glass in contrast to opacity)
    image898×324 32.5 KB
  4. Set transmission to 1, roughness to 0, metalness to 0
    image1894×1168 137 KB
  5. If you want to be able to preview the glass material in Unity, add this renderer feature (in URP):
    image1892×1110 134 KB

    or this script in BiRP:
    image840×290 21.1 KB

Optionally you can also turn on volume, thickness, and/or dispersion to make more realistic glass. These additional features are not supported in QuickLook at the moment, but regular full-glass materials are supported there as well.
